Prezentare anunt

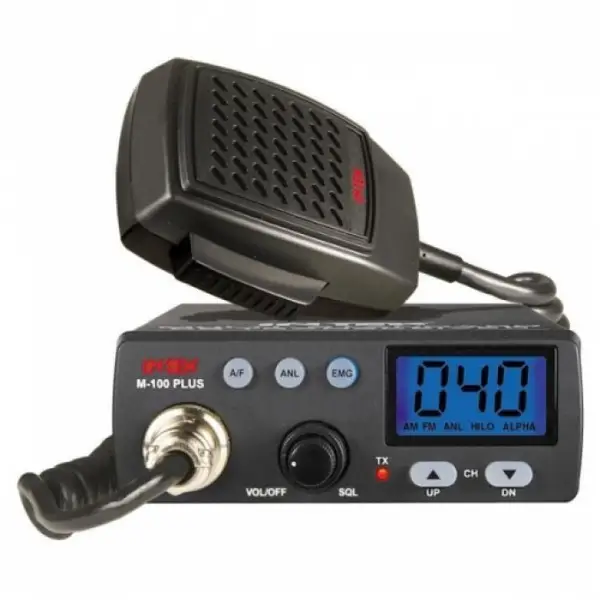

Statie radio mobila CB 27MHz

Statie radio mobila, model mic 10 cm !!! 27 MHz (CB), INTEK, FM, 4W, 13,8VDC

tate-of-the-art Citizen Band 27MHz mobile transceiver, with advanced hardware and software design, suitable for Citizen Band operators and for car & truck drivers. 9 bands programmable multi standard circuit design, matching the frequency & operating mode requirements of all the

European countries. 3-digit LCD channel/band indicator, 3W speaker for strong and clear audio sound. Automatic Noise Limiter and EMG key. Soft type microphone curl cord. The most compact multi band mobile CB radio in the world, 10 cm width cabinet, easy to install in every vehicle.

One radio only, ready for use in all the European countries !

Features • MULTI STANDARD CIRCUIT DESIGN

• BACKLIGHTED LCD DISPLAY

• 3-DIGIT BAND / CHANNEL READING

• 9 BANDS PROGRAMMABLE

• AM / FM

• TX LED INDICATOR

• HIGH QUALITY CONDENSER

• MICROPHONE WITH 4-PIN RING

• CONNECTOR

• 3W SPEAKER

• ANL AUTOMATIC NOISE LIMITER

• QUICK UP / DN CH SELECTION

• EMERGENCY CHANNELS CH9 / CH19

• RUBBER SOFT TOUCH KEYS

• ULTRA COMPACT 10 CM WIDTH

• CABINET

Specifications

General

Channels

Refer to programmed band

Modes (AM, FM)

Refer to programmed band

Operating Temp.

-10°/+55°C

DC Input Voltage

13.2Vdc ±15%

Size

100(L) x 37(H) x 180(D) mm

Weight

690 gr.

TRANSMITTER

System

CPU Controlled PLL Synthesizer

Max Output Power

4W at 13.2Vdc

Modulation

AM (from 85% to 95%)

FM (1.8 KHz ±0.2 KHz)

Output Impedanced

50 Ohm unbalanced

Current Drain

1300 mA (at no modulation)

RECEIVER

System

CPU Controlled Double Conversion Super Heterodyne

IF

1° 10.695 MHz

2° 455 KHz

Sensitivity

0.5µV for 20dB SINAD (FM)

0.5µV for 20dB SINAD (AM)

Audio Output Power

@10% THD 2.5W at 8 Ohm

Audio Distorsion

<8% at 1 KHz

Image Rejection

65dB

Adjacent Ch. Rejec.

65dB

Signal/Noise Ratio

45dB

Current Drain

325mA (stand-by)

GARANTIE 24 LUNI
